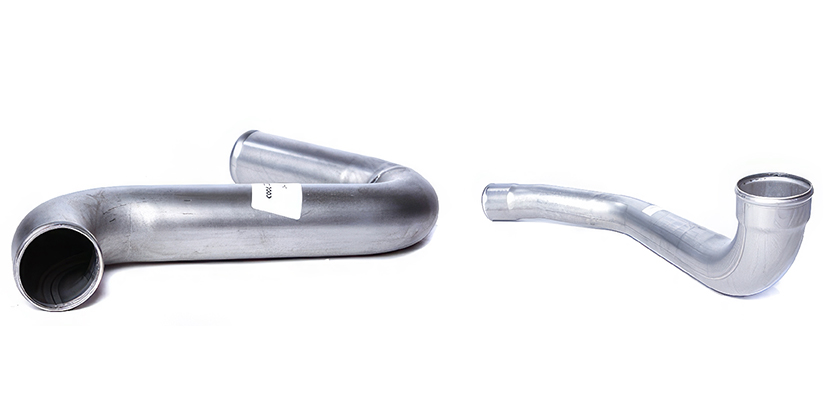

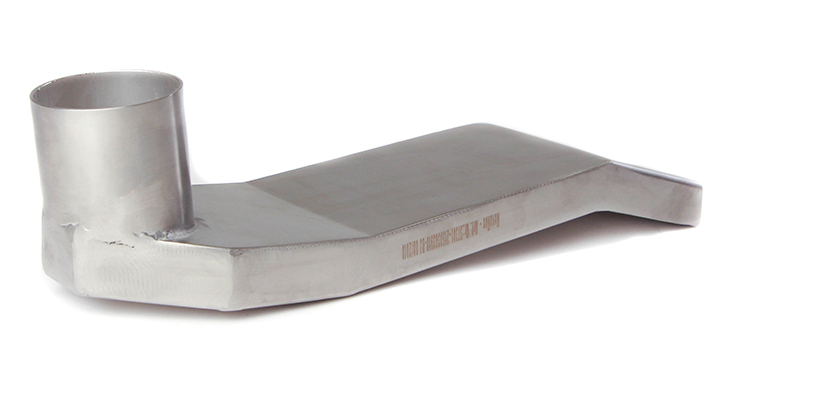

Pipelines by NovaNox®

In order to ensure test phases and the smooth use of your product after commissioning by the customer, we test the structural strength, fatigue strength and material efficiency of your concept at an early stage. For this purpose, we use FEM calculations in an early development phase of the product.

We then digitally present the consequences of different force effects, temperature influences and electrical stresses using linear and non-linear structural-mechanical calculations. This approach allows us to test the effects of the various influences on the entire product at an early stage. The process takes place even before prototypes are built and is feasible for both simple and complex geometries.

The results are of course subsequently available to you as evidence for technical approvals, production releases or for product liability. The FEM calculations are performed analytically according to generally and internationally standardized standards. The calculations ensure comparability and reliable results. We take care of the following points for you:

• Linear and non-linear structural mechanics calculations
• Analyses of stability, deformations and stiffnesses
• Consideration of natural vibrations
• Transient structural analysis
• Collision analyses
• Temperature field calculation (thermal-transient or thermal-stationary)
• CAE-supported fatigue calculation with nCode

We provide you with the manufactured technical drawings in 2D (in dxf, dwg and pdf formats) and in 3D (in step format). Depending on your needs, this may include individual part drawings, assembly drawings, overall drawings or assembly drawings. Technical documentation for checking purposes is also included. With the help of these technical drawings and documentation, our customers can make adjustments or add special requests even before production. This means you can be sure that everything fits when production is due to start.
You can be sure that all components fit exactly and are implemented flawlessly. Thanks to this comprehensive documentation and technical drawings, communication across your entire development and manufacturing process chain is optimized. The different information needs of each stage are thus met and run much more efficiently.

We work closely with you in the development, planning and design of the construction, material and manufacturing processes so that a result as close to series production as possible can be achieved even before the prototype phase. This ensures an optimal result and compliance with your time and cost planning.
The analysis of the FAI results provides the final touch. With this analysis, we optimize the production process to ensure maximum efficiency and profitability. Shortening the start-up phase and successfully transitioning to series production as planned are central points of the analysis.

As a system supplier, we are happy to take over the entire process from requirements planning to logistical processing for our customers. When taking over these processes, our own consignment warehouse is a great help. With a total of 1,200 m² of storage space, we ensure uninterrupted production processes for our customers. On the one hand, this saves you costs compared to using your own storage capacities. On the other hand, you have the possibility to produce in larger quantities at lower costs.
By taking over the logistical processes, the component supply for your series production is secured in the best possible way, as we can deliver the tubes to you on schedule and flexibly on demand. In addition, we take your existing logistics processes into account. With the help of the above-mentioned points, we guarantee a secure component supply of NovaNox® steel tubes throughout the year.
