Aluminum pipe bends are lightweight, strong, and corrosion-resistant connectors made of aluminum, used primarily in tanker, ship, vehicle construction, and plant engineering. They join two pipes at the desired angle, offering practicality and durability.
Topics

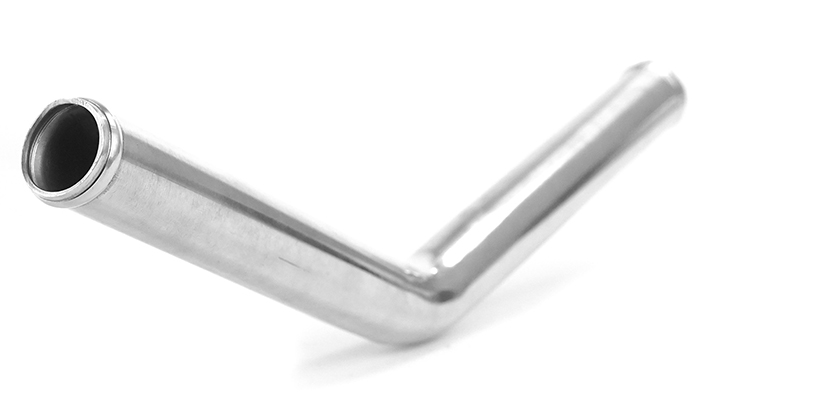

Expertise in Aluminum Welding and Pipe Bending
Aluminum Pipe Bending for Diverse Industrial Needs: At NovaNox®, we specialize in aluminum welding and crafting pipe bends in various designs and angles. Our custom aluminum elbows are essential in tanker, ship, and vehicle construction, as well as apparatus and plant engineering. We commit to using only high-quality materials, ensuring each product adheres to rigorous standards.
Durable and Versatile Aluminum Elbows: Recognized for their lightweight yet robust nature, aluminum pipe bends are crucial in numerous industrial settings. They facilitate the precise direction of liquid and gas flow. Our aluminum elbows boast impressive temperature resistance up to +300°C and are distinguished by their low dead weight, making them ideal for demanding environments.
Unwavering Commitment to Quality: Quality is paramount at NovaNox®. Our industrial pipe bending services produce aluminum pipe bends from top-tier materials, each undergoing stringent quality checks. Collaborating closely with our clients, we tailor our products to meet their unique specifications and requirements.
Beyond Pipe Bends – A Comprehensive Product Range: Our expertise extends beyond aluminum pipe bends. NovaNox® offers an extensive array of products, including flanges, fittings, and pipes, all reflecting the high standards established by our aluminum elbows.
Personalized Service and Expert Consultation: Our goal is to deliver all-encompassing service to our clients. The NovaNox® team is readily available to address inquiries and assist in selecting the perfect products for specific applications. Leveraging our extensive expertise, we are equipped to help you overcome any challenge.
Connect with Us: Discover more about our products and services by contacting us today with one click here. The NovaNox® team eagerly awaits the opportunity to assist you with your industrial needs.

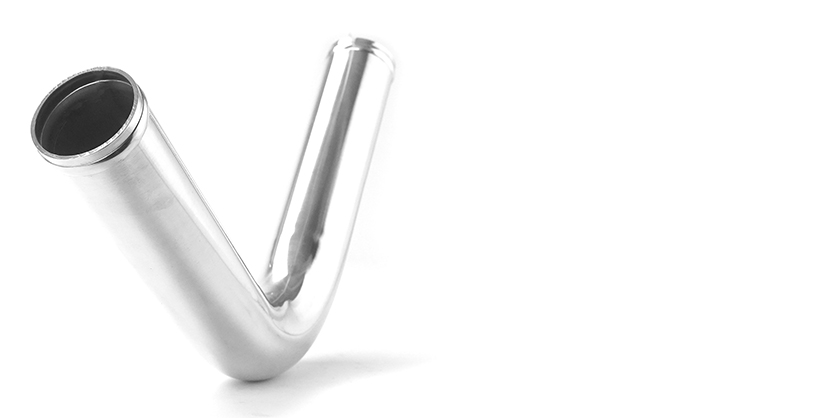

Customized manufacturing
Personalized Aluminum Pipe Bends for Your Specific Needs: Are you seeking tailored aluminum pipe bends for your unique application? NovaNox® is your go-to expert for custom-manufactured aluminum pipe bends. Whether your requirements include specific dimensions, angles, radii, or surface treatments, we are dedicated to realizing your vision with precision and care.
Expert Guidance and Advanced Techniques: Our team is on hand to assist you in choosing the ideal aluminum alloy for your project. Utilizing state-of-the-art machinery and tools, we excel in bending, welding, and anodizing aluminum pipe bends. Our commitment to precision ensures that every aluminum tube bend we produce meets the highest standards of dimensional accuracy, strength, and surface finish.
Committed to Individualized Solutions: At NovaNox®, we pride ourselves on being your partner in the individualized production of aluminum pipe bends. For a no-obligation quote and to discuss your specific requirements, contact us today. We are eager to contribute to the success of your project!
FAQ - Frequently asked questions
Commonly, AlMgSi 0.5 F22 and EN AW-6060 alloys are used for aluminum pipe bends. These are selected for their excellent weldability, anodizability, and strength-to-weight ratio, along with superior weather resistance.
Aluminum pipe bends come in various angles like 45°, 90°, 135°, and 180°, with radii ranging from 15 mm to 1000 mm. This flexibility allows customization for different pipeline applications.
The wall thickness of aluminum pipe bends varies with the pipe diameter, typically ranging from 1.5 mm to 5 mm. This thickness is a crucial factor in determining the stability and bending strength.
Quality testing of aluminum pipe bends involves checking dimensional accuracy, strength, and surface finish using tools like micrometers and tensile testing machines, adhering to standard guidelines.
Aluminum pipe bends should be stored in a dry, clean environment, shielded from direct sunlight and moisture. During transport, they require proper cushioning and should avoid contact with other metals to prevent corrosion.
Mounting aluminum pipe elbows can be done through bolting or welding. Correct alignment and use of suitable bolts, gaskets, and welding equipment are essential for effective installation.
Cleaning aluminum pipe bends can be done with a soft cloth and mild cleaning agents. Specialized aluminum cleaners are also available. Polishing with natural acids like vinegar or citric acid can enhance their shine.
Aluminum pipe bends are preferred for their light weight, high stability, excellent formability, and environmental friendliness, making them a superior choice over materials like steel or plastic.
Despite their advantages, aluminum pipe bends can be more expensive, less heat resistant, prone to galvanic corrosion with other metals, and sensitive to certain chemicals.
Services
Our FEM calculations are a cornerstone of product development, ensuring smooth test phases and customer satisfaction post-commissioning. By using advanced FEM calculations, we assess component strength, fatigue strength, and material efficiency. Our digital simulations explore the impact of diverse forces, temperature variations, and electrical stresses, including both linear and non-linear structural-mechanical calculations. These comprehensive analyses enable us to predict the performance of simple to complex geometries even before prototype development. The results serve as crucial evidence for technical approvals, product liability, and production releases. Our standardized, internationally recognized analytical approach guarantees comparability and reliable outcomes. Services include:
- Linear and non-linear structural mechanics calculations
- Deformation, stiffness, and stability analysis
- Natural vibration considerations
- Transient structural analysis
- Collision analyses
- Temperature field calculation
- CAE-supported fatigue calculation with nCode
NovaNox® excels in providing detailed design drawings and comprehensive technical documentation for your projects. Our services include 2D (.dxf, .dwg, .pdf) and 3D (.step) format drawings, encompassing individual part, assembly, and overall drawings. The extensive documentation we offer allows for pre-production adjustments and special requests, ensuring precision and accuracy from the onset of production. This range of technical drawings and documentation facilitates efficient communication across your development and manufacturing processes, addressing diverse information needs and enhancing overall efficiency.
At NovaNox®, our prototype and series construction services are designed to streamline your manufacturing process. We provide detailed design drawings in both 2D (.dxf, .dwg, .pdf) and 3D (.step) formats, covering all necessary individual and assembly drawings. Comprehensive technical documentation accompanies these drawings, enabling you to fine-tune and customize before commencing production. Our approach ensures a perfect fit at production start. By analyzing FAI results, we enhance manufacturing efficiency and profitability, helping to shorten implementation times and kickstart series production on schedule. This meticulous process ensures budget adherence and optimal security for your project.
NovaNox® manages the entire component supply and logistics process, aligning with your existing logistical frameworks. We offer a substantial 1,200 square meters of consignment warehouse space, reducing your need for personal storage and enabling cost-effective bulk production. Our system ensures on-schedule, flexible delivery of aluminum sheets from our consignment warehouse, facilitating a reliable year-round component supply. Discover how NovaNox® can meet your aluminum sheet needs through a personalized consultation.
Quality management
At NovaNox®, we prioritize traceability in every aluminum sheet through our meticulous type designation process. This system enables detailed tracking from production to final use, ensuring an unbroken chain of evidence. Depending on the specific requirements of your project, we offer various type marking options:
- Laser engraving
- Welded metal signs with laser engraving
- Self-adhesive metal signs with laser engraving
- Self-adhesive plastic labels with custom imprint and silicone coating for external protection
Your aluminum sheets will feature unique identifiers, such as symbols, numbers, or letters, guaranteeing traceability at all times.
Ensuring the leak-proof integrity of your aluminum sheets, especially under extreme conditions, is a critical aspect of our quality management at NovaNox®. We conduct comprehensive leak tests to guarantee this, and each delivery can be accompanied by a NovaNox® test certificate, affirming conformity. Our leak testing procedures include:
- 100% air-under-water test in a dedicated basin (e.g., per ECE R34 or 70//21/EEC regulation)
- Pressure testing
- Leak detection using red or fluorescent dyes
- Ultrasonic testing
These tests are a vital part of our commitment to delivering faultless products.
In-depth documentation is a fundamental pillar of our quality assurance. By thoroughly documenting manufacturing processes, NovaNox® ensures the consistent high quality of your products. This detailed record-keeping also uncovers potential cost savings, particularly in large-scale projects, by allowing early identification and resolution of defects. Detailed, repeatable processes create time efficiencies and free up personnel resources. Our comprehensive documentation for quality management includes:
- Initial sample inspection report (VDA 2, EN 9102)
- Factory certificates 3.1 and 2.2 (EN 10204)
- Dimensional protocols using 3D measuring technology (Faro measuring arm)
- Declarations of conformity for pressure tests
